Add to Cart for Discount| Speed (rpm): | 43 |
| Rated Torque (lb-in): | 393 |
| Motor HP: | 1/3 |
| Volts: | 230/460 |
| Hz: | 60 |
| Phases: | 3 |
| Amps: | 1.50/0.76 |
| Gear Ratio: | 40 |
| `Torque at 10Hz: | 248 |
| Length H (inch): | 15.47 |
| Weight (lbs): | 29 |
| Connection Diagram: | 07410883C |
| Product Type: | 42R6BEPP-25H2 |
| HP Decimal: | 0.333 |
STANDARD FEATURES

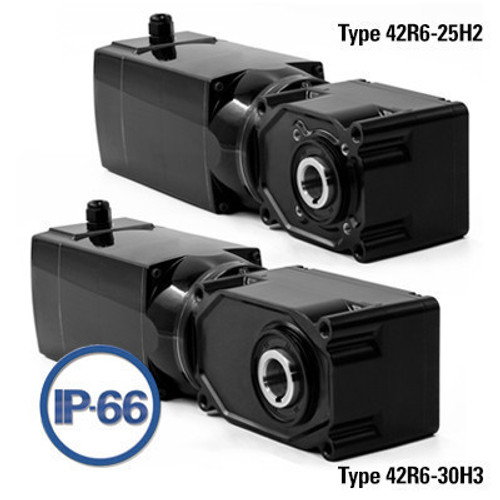

- 42R6 AC 3-phase motor provides high starting torque, variable speed, and predictable performance. Compatible with many inverter drives (VFDs). TENV.
- Class "F" insulation and ratings; Rated ambient temp: +40°C.
- Permanently lubricated, noise-tested, sealed, ball bearings.
- Hardened steel gearts for long life and maximum performance.
- Hollow shaft eliminates need for shaft couplings and extra mounting hardware.
- 1.25-inch hollow shaft bore size
- One plastic shaft cover is included with each gearmotor.
- Face mount via four tapped holes or through-bolts.
- Unvented gearhousing mounts in any orientation.
- High-performance Grease. Gearmotors are lubricated for life.
- More efficient than similar-sized worm-gear models.
- Motor can be terminated in end shield. Optional Terminal box 0988 is available.
- IP-66 protection against water ingress and dust (with PG11 fitting and cord installed).
