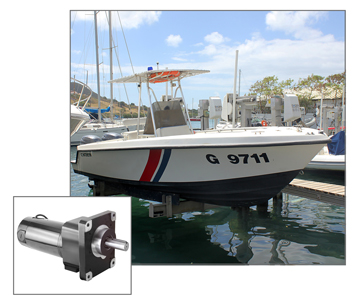

Bodine CG Gearmotors Lift up to 10,000 Pounds

24 VDC high torque gearmotor ensure a reliable lifting force for heavy duty marine applications.

Boat LIFT Manufacturer: Design Versus Reality A manufacturer of boat lifts teamed with Bodine's engineering staff to create a new high-capacity vertical lift that would be able to hoist and lower boats up to 10,000 lbs. The application called for a gearmotor that would operate continuously in the rolling saltwater environment, start and run under high torque condition, and secure itself when idle. Furthermore, the solution was to be operated with 24-volt DC battery and solar systems, thereby requiring energy efficiency to maximize lift cycles per charge.

Robust Gearmotor Solution

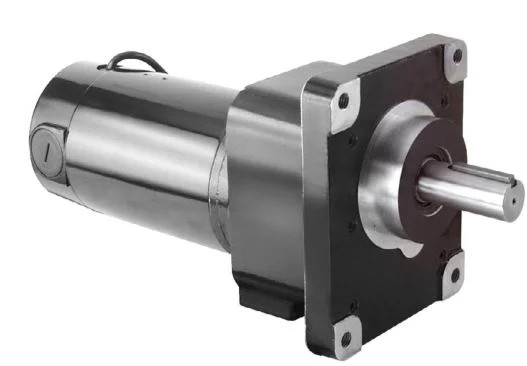

Bodine created a custom solution based on the field-proven 42A-CG Series parallel shaft DC gearmotor. This rugged but efficient and safe design was a perfect fit for the customer’s stringent needs.

Custom Gearmotor Features

Totally enclosed motor with permanently lubricated gearbox, designed to withstand years of outdoor marine exposure
1,100 lb-in of starting and running torque, supporting vertical lifts of watercraft up to 10,000 pounds
Fail-safe positive locking brake to securely hold the lift when not powered
24 V permanent magnet DC motor compatible with battery and solar operation

High-efficiency, hardened helical gearing for dependable long-term performance

Proven Marine Application Reliability

Through the use of Bodine’s CG Series gearmotor technology, the company created a reliable high-torque solution that would fit in with both environmental and functional requirements. Rugged housings, efficient gear trains and compact designs are some of many features on Bodine DC gearmotors available from stock or for OEM customization.

With a century of engineering experience, Bodine offer application-specific motion control solutions from under the sea to the great outdoors and everywhere in between.
