Planetary Gearmotors Deliver Precise Motion

Planetary Gearmotors (24 VDC)Precise positioning for sophisticated mobile motion control systems.

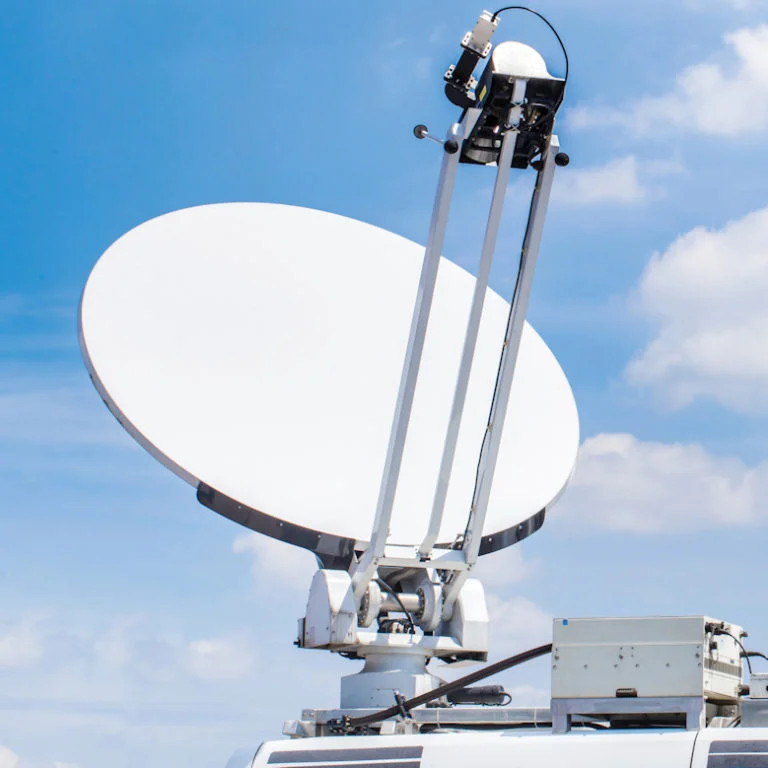

A world wide producer of mobile antenna solutions needed two gearmotors that would be able to point satellite dishes towards orbiting telecommunication satellites. These gearmotors had to be capable of providing extremely accurate and repeatable motion when the satellite was first calibrated, then stay completely still until re-position to a new location.

Since these portable dish systems are used in harsh outdoor environments (i.e. live news broadcasts, sports events, military sites or emergency response centers), the motors needed to be able to operate off a 24 VDC power source and endure severe conditions.

Custom Planetary PMDC Gearmotor Design

Bodine engineers designed and built a new solution based on the Type 24A-60P planetary PMDC gearmotor to meet the OEM’s requirements. The end solution involved custom wiring, mounting, shaft modifications and integration with the encoder. The gearmotor achieved high torque and fine control in a reduced-space package for the portable unit, as well as cost savings when placed side by side alternative products.

Key Design Features:

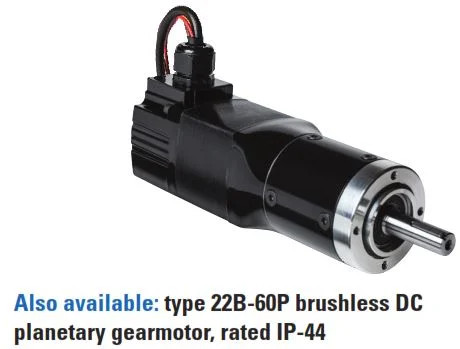

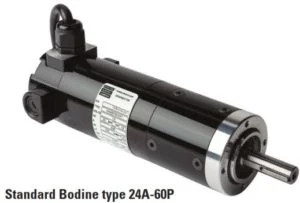

24A-60P, 24Vdc sealed planetary PMDC gearmotor with needle bearings for long life and high peak torque capacity
Closed gear box with high-performance lubricant for constant, long-lasting use in any weather.ContentAlignment
Built-in encoder (1000 PPR quadrature) output to a two-axis motion controller for accurate elevation, azimuth and polarization setting
Watersealed wiring harness built for the harshest environments
Tailored base and shaft style to accommodate the antenna system's limited space ratios

Bodine Gearmotor Solutions:

With more than 114 years in engineering and design experience, Bodine provides motion control solutions for a wide range of industries including power converter/inverter/charger, industrial automation, packaging equipment, material handling Automation equipment and solar energy system. Our planetary gear motors are perfect for applications where the accuracy and durability are vital.

We would be glad to collaborate on your next small gears motor project.

If you would like to download this blog article as a PDF, click here.
